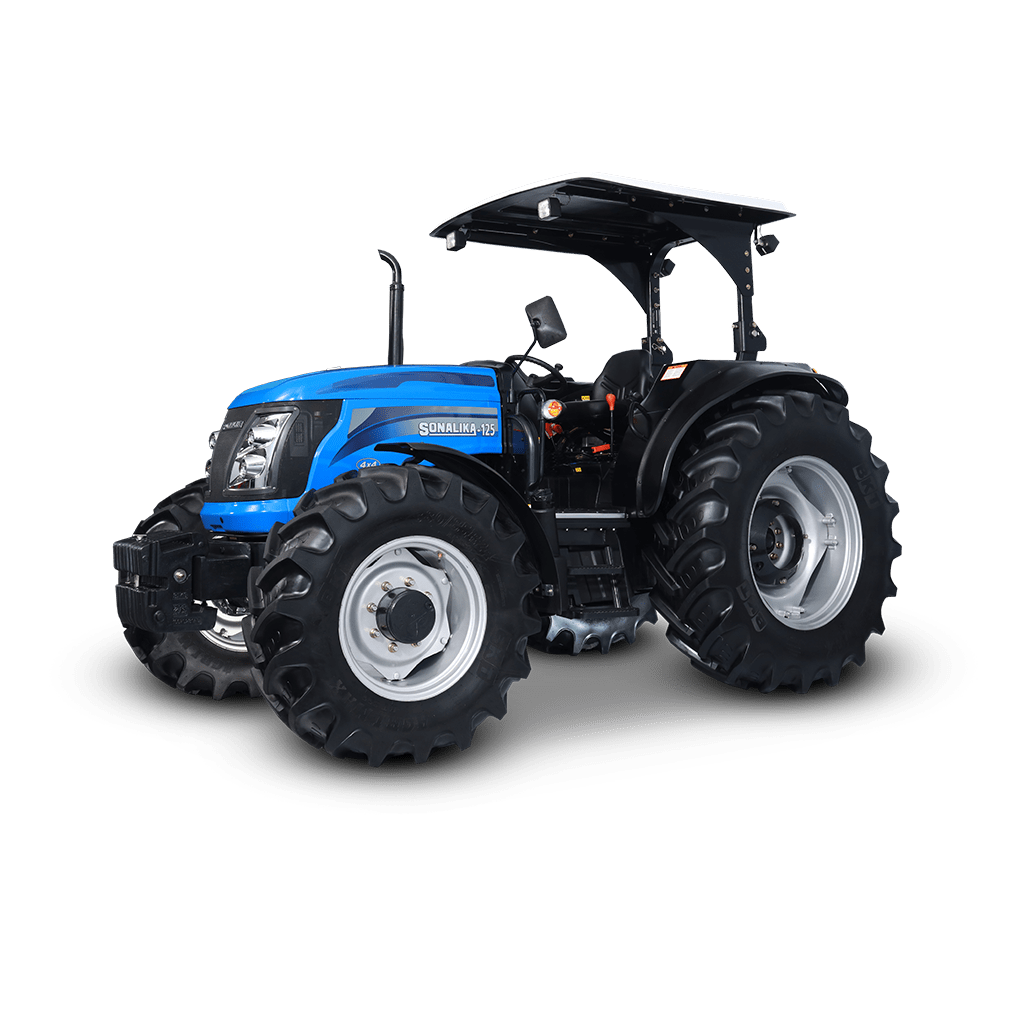

SONALIKA Sierra Leone 105

Features

Engine

Powerful 105 HP 4 Cylinder Engine

Lifting Capacity

Heavy Duty 3500 Kg Lifting Capacity

Reinforced Safety Features

Metalic Body, Better comfort & safety during tough jobs

Variants

Heavy Duty 4WD

Synchromesh 12F+12R Transmission

Jerk Free & Noise free Gear Shifting

Technical Specifications

Engine

Engine Type 4105 IVLT
HP Category 105
No. of Cylinders 4
Aspiration Turbo Charged & Intercooler
Bore/Stroke (mm) 105/118
Cubic Capacity (cc) 4087
Rated RPM 2200
Air cleaner Two Stage dry filter with pre cleaner & scavenging
Max Torque (Nm) 420(+5%) Nm@ 1400(+/-100) RPM
Exhaust Underhood Updraft

Transmission

Drive 4WD
Clutch Double Clutch
Gearbox 12F+12R
Transmission Synchronmesh

Speed (Forward)

Maximum Speed (Km/Hr) 35 @ 2200 ERPM
Minimum Speed (Km/Hr) 1.6 @ 2200 ERPM
Driver Seat  Adjustable

Brakes

Brakes Oil Immersed Brakes
Type of actuation Hydraulically assisted
Parking Brake Independent

Differential Lock

Differential Lock Yes

PTO

PTO (RPM) 540/540E
PTO (Actuation) Mechanical

Steering

Steering Power Steering

Electrical

Battery 12V, 110AH
Alternator 12V, 90Amp
Seven Pin Trailer Socket Yes

Hydraulics

Position Control Yes
Automatic Draft & Depth Control Yes
3 Point Linkage CAT-II
Hydraulic Lifting Capacity 3500Kg.
Auxiliary Hydraulic Circuit 2DA/2SA

Safety Switch

Clutch Safety Switch Yes
PTO Safety Switch Yes
Neutral Safety Switch Yes

Capacity (Ltrs) (+/- 5%)

Fuel Tank (Lit) 117

Tyre

Front 380/85R24
Rear 460/85R34

Dimention & Weight (+/- 5%)

Weight (Kg) 4085
Wheel Base (mm) 2376
Total Length (mm) 4310
Total Width (mm) 2225
Height (mm) up to Canopy 2816
Min Ground Clearance (mm) 455
Front Track (mm) (Standard) 1762
Rear Track (mm) (Standard) 1724

Others

Fuel Indicator Gauge Yes
Registration Plate with Light Yes
Front Toe Hook Yes, inbuilt in front weight
Front & Rear Weights Front-72+8X31 Kg,
Rear- 1X40 Kg on each wheel
Drawbar Swinging Drawbar
ROPS Yes
Cabin HVAC (Optional)

Application

Rotavator

Front End Loader

Cultivator

Disc Harrow

Trailer

Planter

Rotary Slasher
